3 STRIP SEPERATION / INLINE FILM SLITTING ATTACHMENT

THE FUTURE OF VENTILATED STRETCH FILM.

Convert standard stretch film into a high-performance wrapping solution that provides airflow, reduces plastic usage, and maintains secure pallet stability.

STRONGER LOAD CONTAINMENT

SMARTER FILM USAGE

RENTAL OPTION AVAILABLE

VentX Slitter

VentX Slitter is a precision add-on system designed for pallet wrapping machines, developed to enhance the performance of standard stretch film so that it ventilates.

It converts a 500mm film roll into three controlled bands during the wrapping cycle, while maintaining consistent tension across the load.

The slitting function is manually engaged and adjustable, allowing operators to control when and how the film is slit based on load requirements. This provides greater flexibility across different applications while maintaining reliable wrapping performance.

VentX Slitter operates inline with the wrapping process, applying full-width film at the start and end of the cycle, with slit film used throughout the main wrapping phase to optimise efficiency, ventilation and load containment.

Operator Control

Manual engagement of slitting function.

Adjustable control for different load types.

Simple mechanical adjustment, no complex setup.

Allows operators to switch between full-width and slit wrapping as needed.

How It Works

Full-width film with slit film used throughout the main wrapping phase.

Pallet wrapped with 3-band slit film pattern

Start of cycle

Ventilated base wrap

The film is split into 2 sections at the base, to provide a secure load while maintaining airflow from the start.

Main wrapping phase

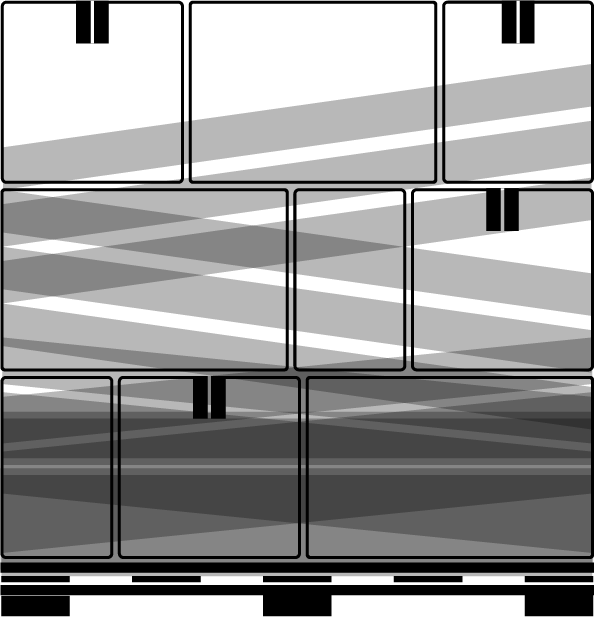

3-band slitting

The 500mm film splits into 3 bands, maintaining tension while improving airflow around the load.

Load securing phase

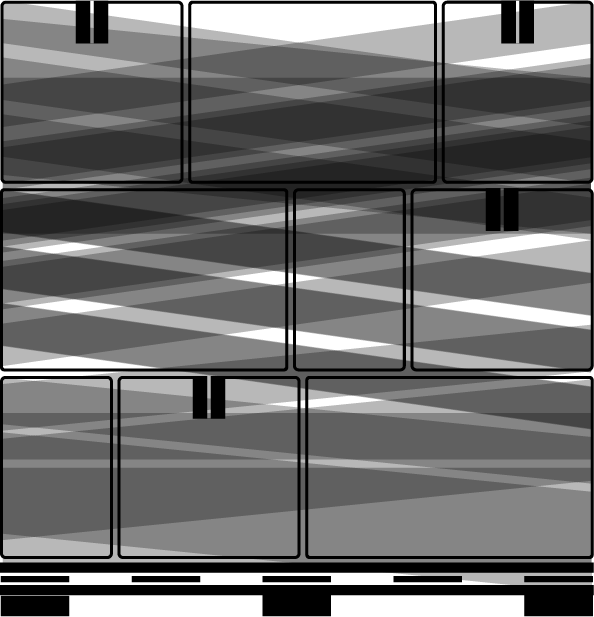

3-band load lock

The three film bands apply targeted wraps to help lock and stabilise the load.

End of cycle

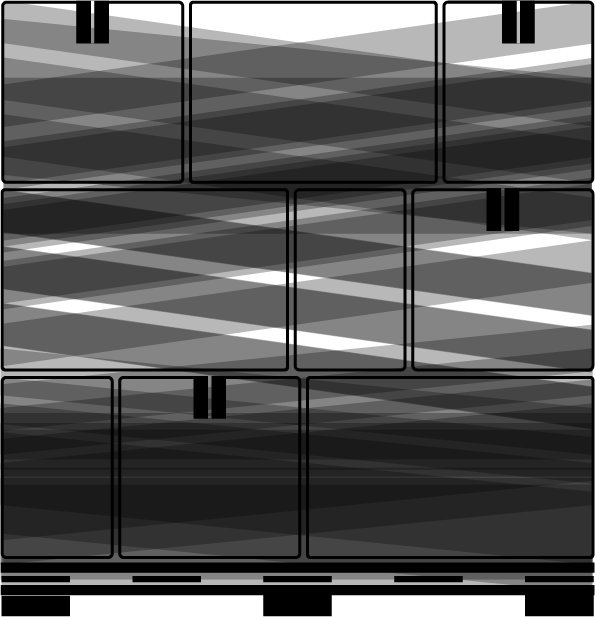

Final ventilated base wrap

The film returns to a 2 configuration at the base to secure the load and finish the wrap.

Key Benefits

Stronger Load Containment

Multiple tension bands improve stability and reduce load shifting during transport.

Reduced Film Usage

Optimises material consumption by reducing reliance on full-width film during the main wrapping phase.

Enhanced Airflow

Spacing between film bands allows ventilation for sensitive or temperature-controlled goods.

Lower Operational Costs

Reduced film usage, fewer roll changes, and improved wrapping efficiency contribute to overall cost savings on high priced pre-ventilated films.

Flexible Wrapping Control

Manual adjustment allows operators to adapt wrapping performance to different pallet types and ventilation requirements.

No Process Disruption

Operates within the existing wrapping cycle with no changes required to workflow or operator handling.

3 SLIT BANDS, APPROX. 150MM EACH

Specification

Product Name VentX Slitter

System Type Inline film slitting attachment

Film Input 500mm standard stretch film

Film Output 3 slit bands approx. 150mm each

Slitting Manually engaged and adjustable

Cycle Full-width → 3-band slit → 3-band lock

Tension Control Machine Controlled

Installation Mounted onto existing pallet wrapper

Maintenance Low maintenance design

Blade Service Included under rental

Ideal Applications

VentX is suitable for a wide range of palletised goods and industries:

Food and beverage transport Products sensitive to moisture or heat build-up Warehousing and logistics operations FMCG and retail distribution Export shipments requiring airflow Manufacturing and industrial goods
